产品名称:串口转接卡(双串)
型  号:HT-233

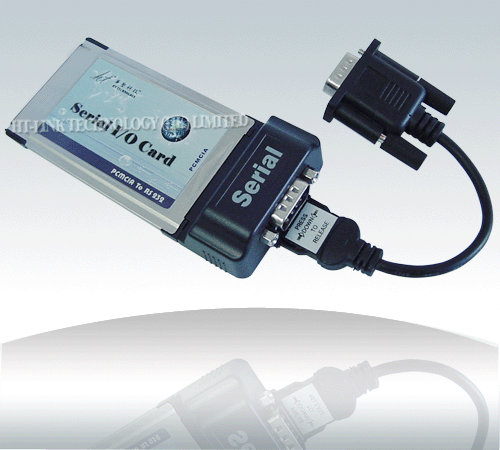

 点击查看大图片

Product: PCMCIA 2-Serial PC Card Adapter
Model: HT-233
Interface: PCMCIA
Port: Two Serial DB9 Ports
Weight: 43.6g
Dimension: 54 * 118 * 23mm(2.13 * 4.66* 0.91″)
Manufacturer: Made in China

Features:
1. 16-bit PC Card Compliant (PCMCIA Revision 7.1)
2. 128-byte deep transmitter/ receiver FIFO
3. High-speed serial port (9-pin) supports baud rates up to 250 kbps
4. IRQ: sharing feature eliminates IRQ conflicts
5. Very low power consumption with industry standard 16C550 type UARTs
6. Removable cable provides one DB9 connector for device connection
7. Works with various types of RS232 serial devices including modems, label printers, bar code scanners, digital cameras and more
8. RoHS compliant

System Requirements:
1. Desktop or notebook computer with PCMCIA socket
2. Win 98/98SE, Win Me, Win NT, Win XP

System Environment:
1. Operating Temperature: 0°C ~50°C
2. Operating Humidity: 10% ~90%RH
3. Operation Voltage: +5.0V ~+3.3V(+/-5% wide range power supply)
